ASE MC05 Comcenter II Iridium Outdoors Fixed Terminal

Price: $3,980.00
  • SKU:
  • Brand:

  • Availability:In Stock

ASE MC05 Comcenter II Iridium Outdoors Fixed Terminal- with Built in Antenna

The ASE ComCenter II Iridium Outdoor fixed terminal offers high quality voice and data for the iridium network, saving time and money in materials and installation. There is no need to run multiple cables for voice or data. This all-in-one reliable and robust weather unit only requires one cable, so you are up and running in no time. This unit is an ideal solution for outdoors applications such as marine, building and vehicle installations.

There are two models available for this product.

Model MC05 - Comcenter without GPS

Model MC05G - Comcneter with GPS

Do you need to buy airtime? Check our Iridium Prepaid and Postpaid Plans.


Box Contents for the ASE Comcenter Outdoor Terminal

  • ComCenter IIG / Outdoor Unit
  • Communications Cable
  • Universal Wall plate
  • AC/DC power adapter: Universal
  • AC input / 24VDC, 15W output
  • Pole Mount Adapter & Hardware
  • Installation CD
  • Product Manual
  • 20 Foot Interface Cable with cable to connector breakout (RJ-11, RJ-45, Power)

Additional Accesories:

Junction Box for cable termination (RJ11, RJ45, Power). Metal with water resistance glands.

ASE Composite Power/Comm Cable With Turret Connectors

  • 50ft. Power/Com Cable for ComCenter II, Outdoor, Turret
  • 100ft. Power/Com Cable for ComCenter II, Outdoor, Turret
  • 150 ft Power/Com Cable for ComCenter II, Outdoor, Turret
  • 328 ft. Power/Com Cable for ComCenter II, Outdoor, Turret

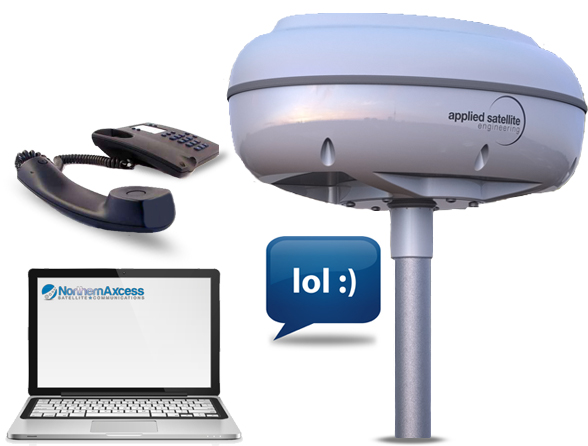

ASE Comcenter II Iridium Outdoors Fixed Terminal Featuresase-comcenter-ii-outdoor-usage-phone-laptop-sms-111.jpg

Voice & Data - The ComCenter Outdoor is a feature rich voice and data unit for accessing the Iridium network indoors.  From pole-to-pole, stay connected via satellite by phone, e-mail, or Internet.  Scalable data transfer speeds available.

     *Voice Highlights

  • POTS interface for extended voice links.
  • Smart Dialing- The ComCenter Outdoor knows the correct country code format and places the call once the number is entered.
  • Supports pre-paid scratch & post-paid manager’s cards.
  • Pre-assigned PIN(s) to protect post-paid usage.

    *Data Highlights

  • IP set-up utilities simplifies installation.
  • Real-time and historical diagnostic logs.
  • IP addressable for data connects direct or using router.



Text Messaging- Exclusive ASE SatChat text messaging withcolor-coded incoming and outgoing messagingandautomatic system status messaging.

Simple Installation - No need to run multiple cables for voice or data. Only one is needed with the ComCenter Outdoor.  Massive savings up to 400 feet of one power and communications cord without amplifiers, active antennas or repeaters. Up to 8,000 feet (voice) and Up to 400 feet (data).

Custom Connection - With a 1 foot adapter cable, the ComCenter Outdoor will convert a custom connection to any RJ11 phone or RJ45 Ethernet interface that can be used with a standard junction box.  Extender cables will be available in 10, 20, 50, and 100 foot lengths.  IP based CAT5 interface.

User Interface - Throughout the GUI interface you can assign and manage users to make calls and connect to the internet and e-mail.  Access to usage reports and configuration, view Iridium signal strength, and connection status. Simplified operation, trouble shoot setup.

Gaskets & Connectors - The gaskets make the ComCenter Outdoor a true all weather unit.  Water tight and weather resistant, the unit will withstand the sun and rain elements.

Internals & Power - The ComCenter Outdoor is an all-in-one unit. Internal components are housed in the white antenna case, so no extra box or case is needed below.  10-32 VDC Input range supports power systems on most vehicles and vessels.

World-Wide Coverage - The Iridium Satellite System is the only provider of truly global, truly mobile satellite voice and data solutions with complete coverage of the Earth.  Through a constellation of 66 low-earth orbiting (LEO) satellites, Iridium delivers essential communications services to and from remote areas where terrestrial communications are not available.

Employee/Crew Calling- Log can be configured for preassigned 7-digit calling ID required to activate call.


Satellite Communication Outdoor Solution.....

ase-iridium-outdoors-comcenter-ii-used-in-a-building.jpg   ase-comcenter-ii-outdoor-series-mc05g-used-emergency-facility.jpg


  • ASE Comcenter Outdoors MC05 Support Document

ASE Comcenter Outdoors MC05 Quick User Guide  (PDF)

ASE Comcenter Outdoor MC05 Antipiracy Wiring Diagram (PDF)

ASE Comcenter Outdoor Quick Start Guide System Setup (PDF)

Specifications

Technical Specifications Interface Cable Lengths RJ11: 8,000 feet Ethernet: 400 feet Power: 400 feet (24-36VDC) Electrical Specifications Operating Voltage: 12-36 VDC Idle Power Consumption: 4 Watts Avg Active Power Consumption: 9 Watts Peak Power Consumption: 15 Watts Environmental Specifications Operating Temp. Range: -40°C to +70°C Exspoure: Outdoor per IEC 60945 Mechanical Specifications Dimensions: 11L x 6W x 5H inches Weight: 3.0 lbs. Mounting: Pole or Surface Internal Iridium Antenna Specifications Frequency Range: 1616 MHz to 1626.5 MHz Return Loss (min): 9.5 dB (<2:1 VSWR) Gain (Weighted Ave. Min.): 0.00 dBic Minimum Horizon Gain: -2.0 dBic (82° conic avg) Nominal Impedance: 50 Polarization: Right Hand Circular Basic Pattern: Omnidirectional & Hemispherical Model # MC05 or MC05G - with GPS
