Beam RST 600 Fixed Data Modem

  • Beam Iridium RST600 Fixed Data Modem
  • Beam RST600 Data Modem
  • RST600 Beam Iridium Fixed Modem with Cable
  • Beam RTS600 Beam Fixed Modem Diagram

In Stock

Product Description

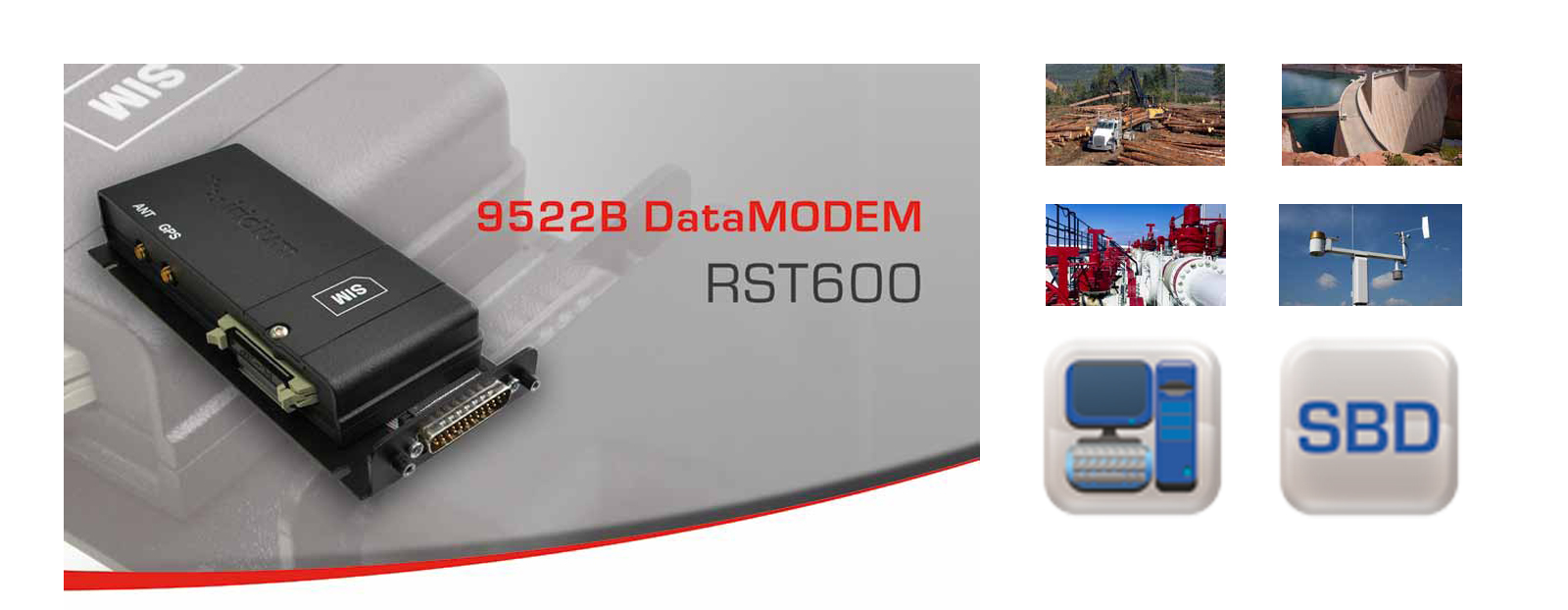

 Beam RST 600 Fixed Data Modem

The RST600 is a stand-alone module that provides access anywhere on earth to all of the Iridium data services.The Beam RST600 uses the latest Iridium 9522B L-Band transceiver. The RST600 allows the connection of standard data terminals and other telecommunications devices to bring you all the convenience and ease of use of a Data Service anywhere in the world using the Iridium Satellite system.
The RST600 is supplied with a robust mounting bracket for flexible installation into a wide variety of applications, alternatively the transceiver module can be installed without the bracket for a more compact installation. The terminal is supplied with cable assemblies to support either a standard or compact installation making it very easy to supply power to the terminal as well as accessing the RS232 D9 serial data connection. It does this by providing a standard interface to the Iridium network, a satellite-based, wireless communications network that enables remote communication.
The data services available on the RST600 terminal include,
• Circuit Switched Data
• Short Message Service (SMS)
• Short Burst Data (SBD)


Beam RST 600 Fixed Data Modem Key Features

  • Compact Installation
  • Various mounting options
  • Cables included in kit
  • In-built 4.0 - 32V DC supply
  • AC 110/240V Plug Pack
  • Full Hayes comatible AT Command set
  • RS232 D9 Serial interface
  • Continuous Circuit Switched Data
  • SBD & SMS

BEAM RST600 Data Modem Network Access Features

  • Global coverage pole to pole
  • Low cost airtime rates
  • No regions or zones
  • Crew calling service
  • Pre or post paid
  • Support all data services
  • Support Iridium Fax terminal

What is on Box of the Beam RST600 Fixed Data Modem

  •  9522B Iridium Transceiver
  •  Mounting Bracket (base plate) with mounting holes & D25 Connection
  • Data & Power Interface cable assembly to support D25 Connection
  • Data & Power Interface cable for use in a compact installation
  • DC Power Cable
  • User manual in hard copy
  • Beam Starter CD including AT command set
  •  AC Mains / 12VDC Plug Pack

Optional Beam Accessories

  • RST710 Fixed Mast Antenna
  • RST715 Magnetic Mount Antenna
  • RST720 Bolt Mount Antenna
  • RST985 Serial to USB Converter Cable


Power Input Specifications & Consumption
Power Average - Voice / Data Call (see note) 4W
Typical current during call (see note) 800mA
Max current during call 2.5A
Input Standby current (average) 250mA
Main Input Voltage - Consumption at +5VDC Ripple 40mV peak to peak
Main Input Voltage Range +4.0 VDC to +32V DC

Physical Specifications
Width 81mm (3.19”)
Weight (approximate) 420g
Depth 28mm (1.10”)
Length 162mm (6.38”)

RF Characteristics
Multiplexing Method TDMA / FDMA
Input/Output Impedance 50Ω
Oscillator Stability ± 1.5 ppm
Duplexing Method TDD (Time Domain Duplex)
Frequency Range 1616 MHz to 1626.5 MHz
Receiver Spurious Rejection at offsets > 1 MHz (typical) 60dB
Receiver Sensistivity at 50Ω (typical) -118.5dBm
Average Power during a frame (typical) 0.6W
Average power during a transmit slot (max) 7W


Part # RST600B
