BEAM IsatDock LITE IsatPhone Pro Docking Station

  • Beam Isatdock Lite Docking Station
  • Isatdock lite docking station for  Isatphone pro satellite phones
  • Beam IsatDock Lite Docking Station for Isatphone pro side view

Price:
$480.00
SKU:
IsatDock-Lite
Brand:
Availability:
In Stock
Quantity:

Product Description

BEAM IsatDock LITE Docking Station for IsatPhone Pro Satellite Phone

Beam IsatDock LITE Docking Station for Inmarsat’s IsatPhone Pro satellite phone allows for a semi-permanent installation on a variety of land and marine applications. The IsatDock LITE enables the IsatPhone Pro to be always on and ready to receive incoming calls, that can be answered via a Bluetooth accessory or the optional privacy handset.

The IsatPhone Pro handset, fits in the IsatDock LITE which is also key lockable for extra security. The IsatPhone Pro handset can be easily inserted and removed by the press of a button making it quickly accessible away from the dock when required

Other features of the IsatPhone Pro include phone charging, USB data port, Bluetooth cable when docked and in-built ringer. The Antenna and power is connected permanently to the dock to allow the IsatDock LITE to be ready for use at all times.

Product Features

  • High quality marine enclosure
  • Complete cover over IsatPhone Pro
  • Key lockable & securable to wall/desk
  • Universal mounting options
  • Accessible control buttons
  • Slimline privacy handset
  • Robust GSPS / GPS antenna connection In-built speakerphone
  • Cable routing LHS/TOP/BOTTOM
  • Active privacy handset
  • Status LED with adjustable brightness
  • USB data access
  • Single button release

Box Contents for Beam IsatDock Lite  Docking Station

IsatDock LITE

10-32 DC Power Cable

Universal Mounting Bracket (RAM)

Handset locking Key

User Manual

Quick Start Guide


ACCESSORIES FOR THE BEAM ISATDOCK LITE DOCKING STATION



             isatdock-vehhicle-magnetic-antenna-isd715.jpg                                               beam-isatdock-bolt-vehicular-active-antenna.jpg                                       beam-isatdock-oceana-fleet-phone-cable-kit-6m-isd932.gif

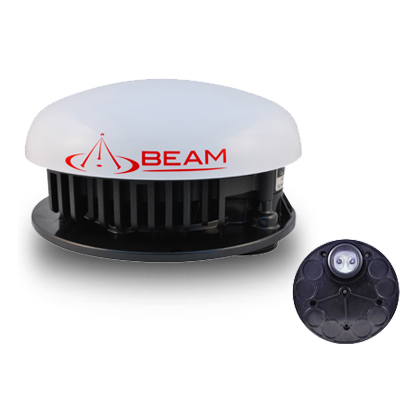

Beam Vehicular Magnetic Antenna-ISD715       Beam Bolt Mount Transport Antenna-ISD720             Beam IsatDock Oceana Cable Kits




        mast-pole-marine-antenna-active-isd710-.jpg                                                        isatphone-fixed-passive-antenna-beam-isd700.jpg                                      cable-kit-for-passive-antenna-isatdock-terra.jpg

Beam Marine Active Antenna ISD710                         Beam Fixed PAssive Antenna ISD700                Beam IsatDock Terra Cable Kit




           beam-ac-plug-pack-isd951-.jpg                                                 privacy-handset-for-isat-dock-lite-and-isatdock-drive-isd955.jpg                                         beam-ups-battery-pack-rst055.jpg

Beam AC Plug Pack ISD951                                 Beam Privacy Handset  ISD955                       Beam UPS Battery Pack RST055






Specifications

Technical Specifications

BEAM-ISD-LITE

Dimensions
230 x 84 x 80 (mm)
9.1 x 3.3 x 3.2 (inches)

Weight
0.56kg 1.24 lbs

Operating Range
-30°C to +70°C
-22°F to +158°F

Storage
-35°C to +85°C
-31°F to +185°F

Battery Charging Temp
0°C to +45°C
32°F to +113°F

POWER
. 9 – 32V DC Input
. Optional 110/240V AC Plug pack

ACCESSING VOICE SERVICES
. Bluetooth Accessory via handset
. Privacy Handset (Optional Accessory)
. IsatPhone Pro Speaker (limited Volume)

OTHER KEY FEATURES
. Keeps phone always charged
. Adjustable inbuilt ringer
. Status LED with adjustable brightness
. Includes universal ram bracket

Interfaces
Inmarsat Antenna
GPS Antenna
10-32 Volt DC
Configuration/Data Port
TNC-Female
SMA-Female
4-way microFit (AC/DC adaptor, or DC lead)
RJ9 connector
USB Micro

Buttons On Dock
Ringer volume up/down
In-call volume up/down
In-call mute
Track button
Alert 2 button press
Speaker/handsfree button

Alert & Tracking Functionality
Supports LeoTRAK-Online
Dedicated internal GPS receiver

Tracking
Periodic location messages
SMS, SMS to email
Location message sent upon button press
Ignition ON/OFF reporting
Remote location polling via SMS

Alert Mode
2 Button press on docking station
Periodic alert location messages
Supports external “man down” pedant or button
Remote clearing of alert via SMS

Tracking Message Content
Message ID#
Header
Latitude/Longitude
Speed
Direction
Altitude
